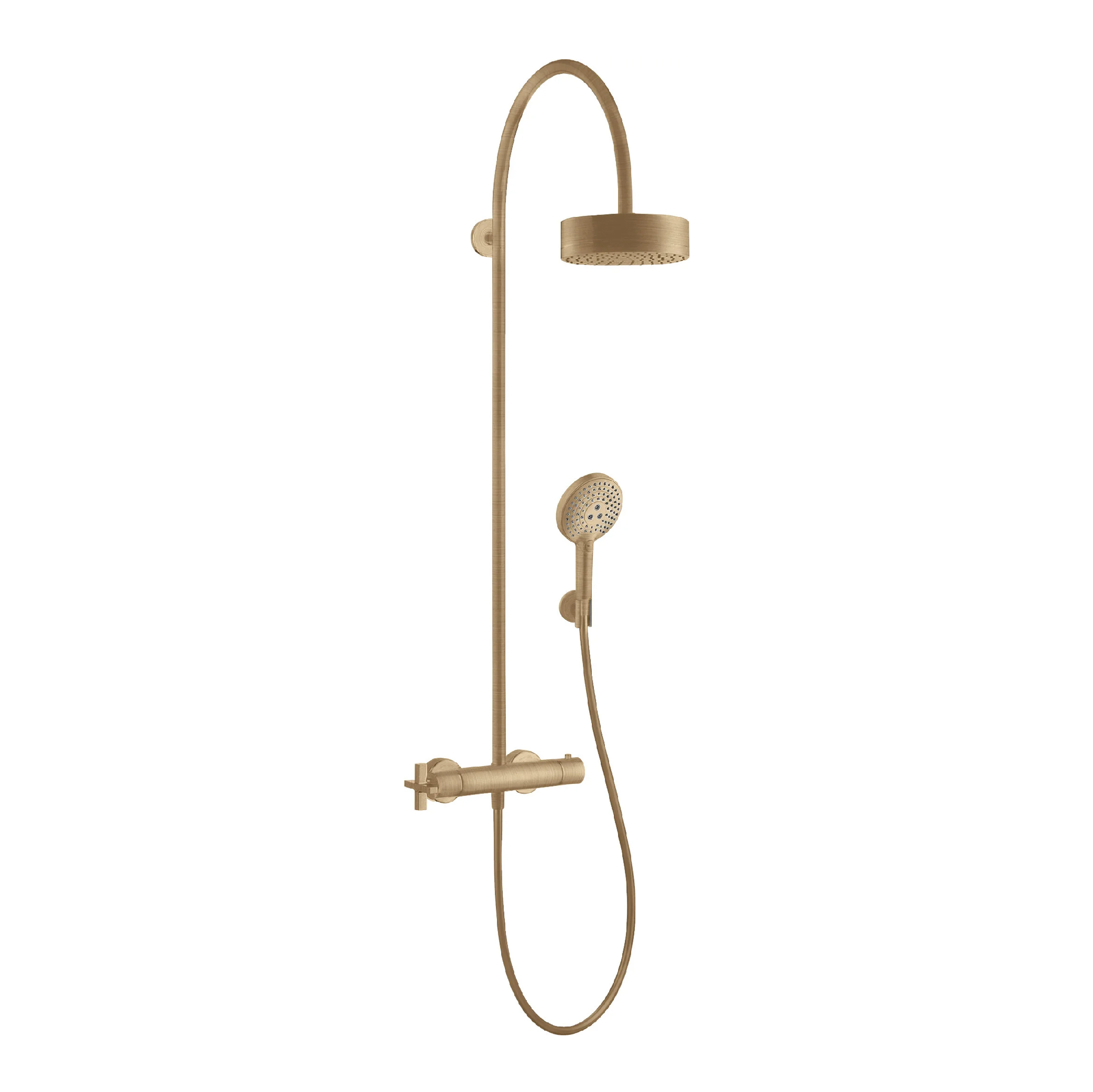

AXOR CITTERIO SHOWERPIPE W/ THERMOSTAT

Features:
· overhead shower AXOR Citterio
· shower head size overhead shower: 180 mm
· spray type overhead shower: Rain
· overhead shower angle adjustable
· spray type hand shower: RainAir, Rain, Whirl
· Maximum flow rate (at 3 bar): 17 l/min
· flow rate Rain 17 l/min at 3 bar
· Min. operating pressure: 1 bar
· Max. operating pressure: 10 bar
· Shower bar diameter: 22 mm
· hand shower wall support
· shower arm length overhead shower: 444 mm
· thermostat AXOR Citterio
· safety stop at 38°C
· adjustable hot water limitation
· outlets controlled via volume control/diverter and
may not be used simultaneously
· exposed design allows easy installation, all working parts are outside of the wall
· Connection dimension 1/2″
· Connection thread ½”
· Centre distance 150 mm ± 12 mm
· Intrinsically safe against backflow
· Installation: wall-mounted
· Amount of inlets / outlets: designed to run 2 outlets
